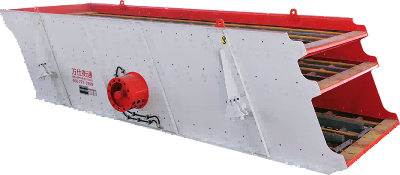

WSHT ZS系列振动筛（矿山振动筛）

WSHT ZS Series Vibrating Screen

Capacity: 70-600 TPH | Precision Engineered for Mining & Mineral Processing

产品概览

The WSHT ZS Series Mine Vibrating Screen is a heavy-duty screening solution engineered for demanding applications in large-scale mining and mineral processing operations. Featuring a robust vibrator assembly, reinforced screen body, and advanced damping system, the ZS series delivers reliable performance under high feed rates and severe operating conditions. It is specifically designed for primary and secondary screening of crushed ores in gold, copper, iron ore, and aggregate processing plants where durability and uptime are critical.

Key Features & Benefits

• Heavy-Duty Vibrator
  Large-diameter eccentric shaft with heavy-duty spherical roller bearings for continuous operation.
• High Capacity
  Large screening area and high amplitude handle feed rates up to 600 TPH effectively.
• Advanced Damping System
  Rubber or steel spring mounting system effectively isolates vibration from supporting structure.
• Wear Protection
  Replaceable wear liners at feed box and discharge areas protect against abrasive wear.
• Flexible Screen Media
  Compatible with woven wire mesh, polyurethane panels, rubber mats, and punch plate screen media.

Technical Specifications

Working Principle

The ZS vibrating screen operates using a centrifugal force excitation system. The vibrator mechanism, driven by an electric motor through V-belts, generates controlled vibratory motion that is transmitted through the screen body to the screening decks. Feed material introduced at the feed end is fluidized and stratified by the vibration, allowing fine particles to pass through screen openings while oversize material is conveyed to the discharge end. The screen angle and vibration parameters are adjustable to optimize performance for specific materials and cut points.

应用领域

• Large-Scale Mining
  Primary and secondary screening in large gold, copper, and iron ore processing plants.
• Aggregate Processing
  High-capacity aggregate sizing in quarry and construction material production operations.
• Coal Handling
  Raw coal sizing and product screening in coal preparation and handling facilities.
• Industrial Minerals
  Screening of limestone, phosphate, gypsum, and other industrial minerals.

Contact WSHT Mining Group

For detailed specifications, pricing, or customized solutions, please contact our engineering team.
