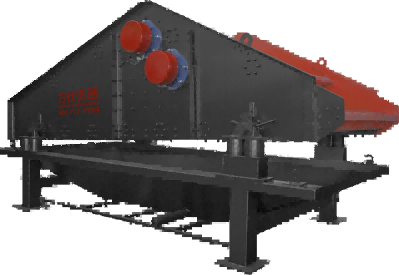

WSHT TS系列脱水筛

WSHT TS Series Dewatering Screen

Capacity: 40-250 TPH | Precision Engineered for Mining & Mineral Processing

产品概览

The WSHT TS Series Dewatering Screen is a high-frequency, linear-motion screen purpose-built for dewatering and draining of wet granular materials in mineral processing and aggregate plants. Its high-G-force vibratory action effectively removes surface moisture from screened products, reducing moisture content to levels suitable for transport, storage, or downstream processing. The TS series is widely deployed for dewatering sand, mineral concentrates, coal fines, and other granular materials where moisture reduction is critical.

Key Features & Benefits

• High G-Force Vibration
  High-frequency, high-amplitude linear vibration efficiently evacuates moisture from material bed.
• Low Moisture Product
  Achieves product moisture content as low as 8-12% depending on material type and feed conditions.
• Drainage Screen Surface
  Specially designed slotted or polyurethane panel screen media maximizes water drainage efficiency.
• Self-Cleaning Design
  Vibration action prevents screen blinding and ensures continuous operation without clogging.
• Wear Protection
  Rubber-lined feed box and discharge chutes reduce wear from abrasive slurries.

Technical Specifications

Working Principle

The TS Dewatering Screen employs two counter-rotating vibrator motors generating a linear vibration that is typically directed at 45° to the screen surface. Feed slurry enters at the feed end and is rapidly dewatered as the linear motion conveys material along the screen deck. Water passes through the screen openings and is collected in an under-pan, while the dewatered solid material discharges at the lower end. The combination of high acceleration and thin material bed depth ensures efficient moisture removal with minimal product loss.

应用领域

• Sand Dewatering
  Dewatering of natural and manufactured sand products in aggregate washing plants.
• Mineral Concentrates
  Moisture reduction of flotation and gravity concentrates prior to transport or smelting.
• Coal Fines Dewatering
  Dewatering of fine coal slurries from coal washing and preparation operations.
• Tailings Management
  Dewatering of coarse tailings fractions for dry-stack tailings management systems.
