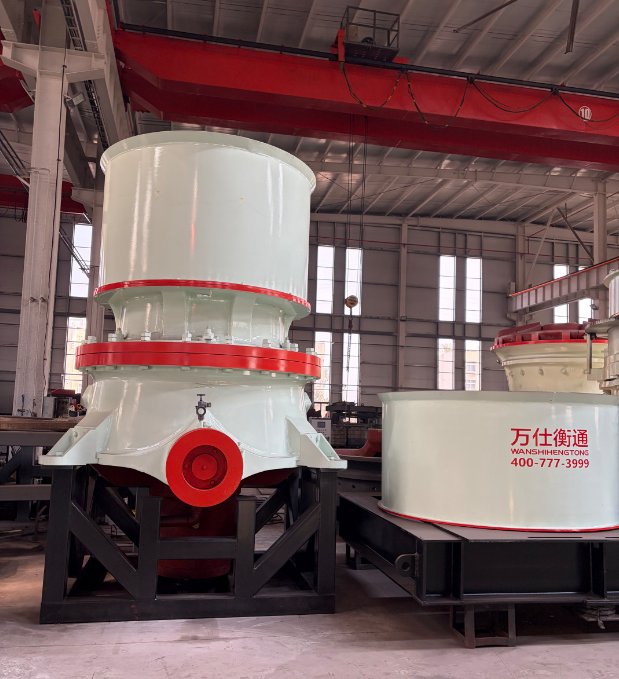

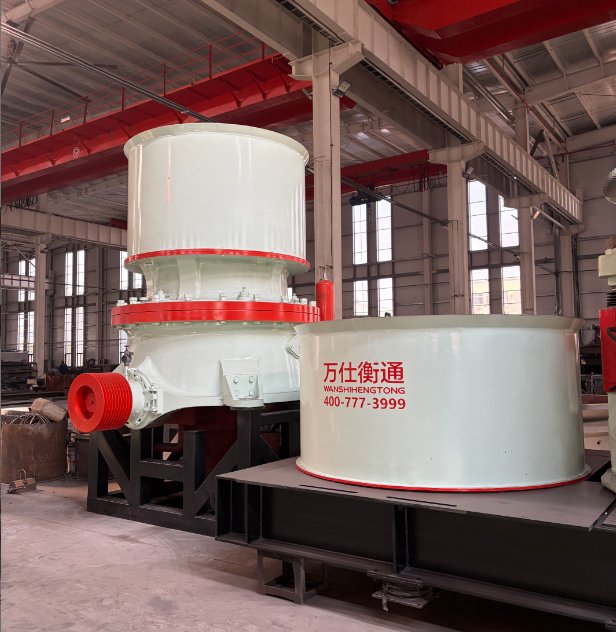

01. Product Overview
WSHT single cylinder hydraulic cone crusher is intelligent fine crushing equipment for high-hardness stone materials.
02. Model Parameter Specification
| Model |
Feeding Size(mm) |
Capacity(t/h) |
Motor Power(kW) |
Discharge Size(mm) |
| SC100 |
90 |
50-90 |
75 |
10-30 |
| SC160 |
130 |
90-150 |
132 |
12-35 |
| SC250 |
180 |
150-210 |
160 |
15-40 |
| SC315 |
220 |
180-260 |
220 |
18-45 |
| SC450 |
260 |
250-380 |
315 |
20-50 |
03. Core Advantages
💧 Single Hydraulic System
One-key discharge adjustment, intelligent control.
🛡 Overload Protection
Automatic iron passing, prevent machine damage.
📐 Cubic Aggregate
Uniform particle shape, high-quality finished stone.
🔧 Low Maintenance
Simple structure, easy daily maintenance.
04. Applicable Materials
Granite, basalt, limestone, river pebble, iron ore, mine stone and other high-hardness ores.
05. Working Scene & Matching Line
Perfect for secondary and fine crushing. Match jaw crusher, vibrating screen and belt conveyor to form full automatic stone crushing production line.
06. Factory Service
- ✔ Full SC series models support customization
- ✔ Original spare parts supply
- ✔ Free production line layout design
- ✔ International export standard packaging
- ✔ Long-term after-sales technical support
