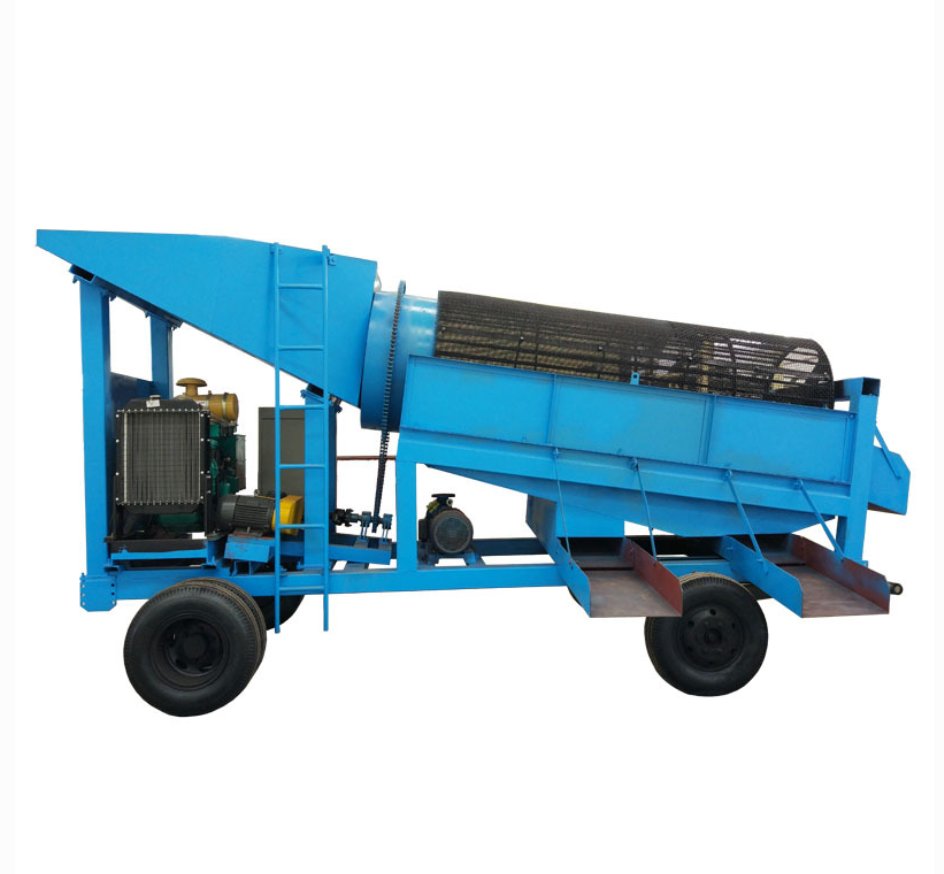

WSHT Large Trommel Gold Washer Mobile High Capacity River Sand Gold Mining Washing Machine
ISO认证 高级材质
98%
运行时间率
20+
服务年数
50+
国家
筛分设备

WSHT Large Trommel Gold Washer Mobile High Capacity River Sand Gold Mining Washing Machine

产能: 50-80t/h

WSHT large trommel gold washing machine is professional heavy-duty gold mining equipment. It adopts rotary rolling and high-pressure water flushing technology to remove mud and screen gravel efficiently. With super large processing capacity and durable structure, it is widely used in large river sand gold and placer gold mining projects.

重型建筑
低运营成本
易于维护
全球售后服务
WhatsApp miki
+86 13072650729
现在聊天
产品概览

技术规格 & 应用领域

详细技术信息、工作原理和应用场景。可根据您的项目需求提供定制配置。

WSHT Large Trommel Gold Washer | High Capacity Placer Gold Mining Equipment

Product Overview: Heavy-duty large gold trommel washer, designed for large-scale placer gold washing and screening with high efficiency.


1. Equipment Parameters

Model Capacity(t/h) Drum Size(mm) Power(kW) Screen Mesh(mm)
2550 80-120 2500×5000 15 2-30
3060 120-180 3000×6000 22 2-30
3570 180-260 3500×7000 30 2-30

2. Core Advantages

✅ Super Large Output

Suitable for large mining projects.

✅ Full Water Spray Wash

Thorough mud removal, no blockage.

✅ Thickened Drum Body

Wear-resistant and long service life.

✅ Mobile Optional

Flexible field transfer.

3. Application Scope

Large-scale river sand gold mining, open-pit placer gold washing, muddy ore impurity separation, bulk gold ore pretreatment.

4. Supporting Equipment

Matched with centrifugal concentrator and vibrating chute to maximize gold recovery rate.

Factory Service: Customized solutions, full accessories supply, export standard packaging and long-term technical guidance.

核心特点

为什么选择 此设备

专为可靠性而设计,为性能而打造。每款WSHT产品都体现了我们对质量和创新的承诺。

01

优质建造质量

高强钢结构 & 精密数控加工,确保在最恶劣的采矿条件下长期可靠运行。

02

高生产率

优化的腔体几何形状和智能设计,实现每小时最大产量并减少停机时间。

03

节能高效

先进的工程设计可将能耗比传统设备设计降低高达20%。

04

全球支持网络

现场安装、调试、操作员培训及备件供应全球可得。
