首页⟦SEP⟧ / 产品⟦SEP⟧ / 固定破碎机 / WSHT 大型金矿 trommel 筛分移动式河沙金洗选设备高产能 placer 金旋转筛分机

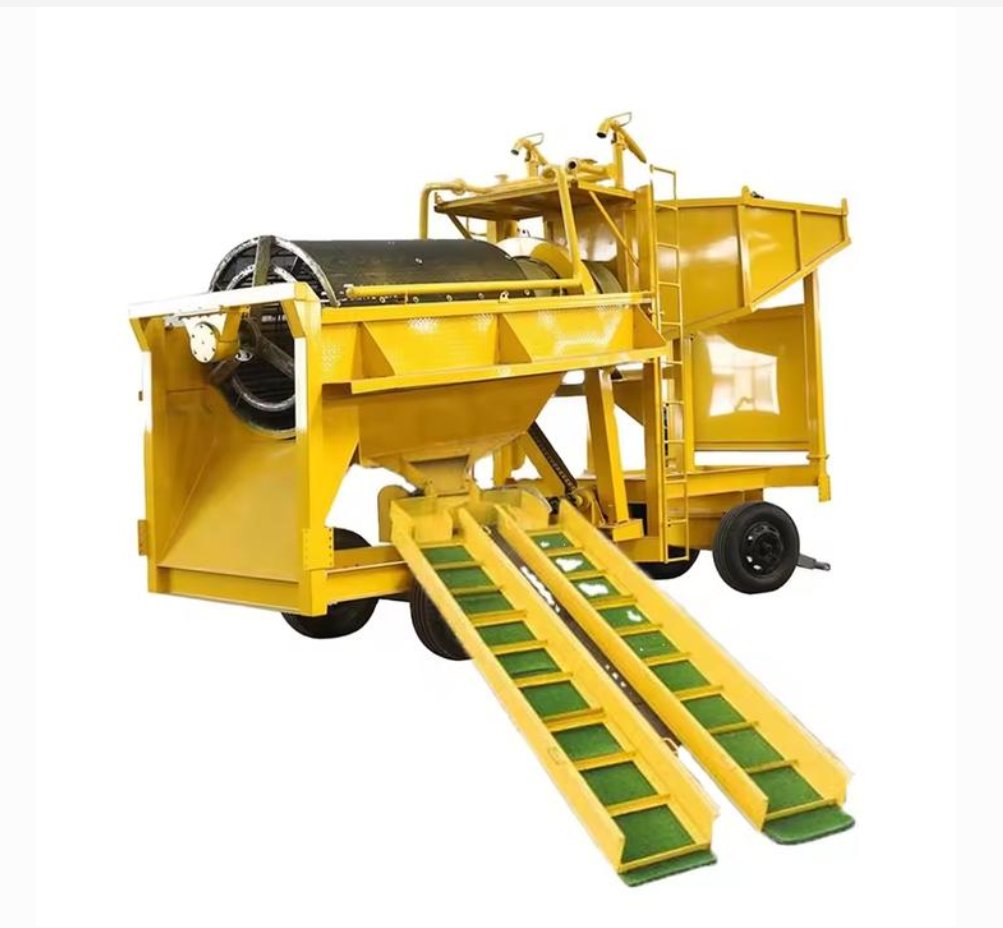

WSHT 大型金矿 trommel 筛分移动式河沙金洗选设备高产能 placer 金旋转筛分机
ISO认证 高级材质
98%
运行时间率
20+
服务年数
50+
国家
固定破碎机

WSHT 大型金矿 trommel 筛分移动式河沙金洗选设备高产能 placer 金旋转筛分机

产能: 50-80t/h

WSHT 大型金矿 trommel 筛分是专为大型吨位采矿现场设计的重型 placer 金洗选设备。配备完整的水洗系统和加厚旋转滚筒,高效去除泥沙和杂质。具有稳定运行和高筛分效率,是大型沙金生产线的预处理设备。

重型建筑
低运营成本
易于维护
全球售后服务
WhatsApp miki
+86 13072650729
现在聊天
产品概览

技术规格 & 应用领域

详细技术信息、工作原理和应用场景。可根据您的项目需求提供定制配置。

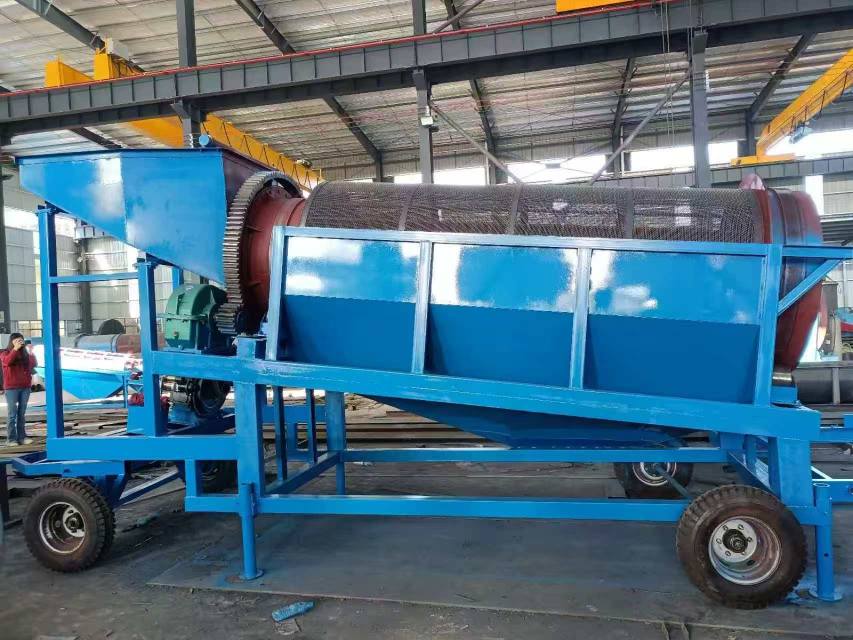

WSHT Large Gold Trommel Screen | High Capacity Placer Gold Washing Equipment

Product Overview: Large heavy-duty gold trommel is high-output washing and screening equipment, specially developed for large-scale river sand gold mining operations.


1. Equipment Parameters

Model Drum Size(mm) Capacity(t/h) Power(kW) Screen Mesh(mm)
GT2550 2500×5000 80-120 15 2-30
GT3060 3000×6000 120-180 22 2-30
GT3570 3500×7000 180-260 30 2-30

2. Core Advantages

✅ Heavy Thickened Drum

Long service life for heavy load mining.

✅ Large Handling Capacity

Meet demand of large mining projects.

✅ Full Water Spray Washing

Thorough mud removal, prevent blockage.

✅ Optional Mobile Chassis

Flexible transfer between mining sites.

3. Application Scope

Large river sand gold washing, bulk placer gold pretreatment, open-pit gold mine centralized screening, muddy sand gold ore cleaning.

4. Matching Equipment

Support matched with centrifugal gold concentrator, vibrating gold sluice to improve overall gold recovery rate.

Factory Service: Customized size design, complete spare parts supply, overseas project technical guidance, export standard packaging.

核心特点

为什么选择 此设备

专为可靠性而设计,为性能而打造。每款WSHT产品都体现了我们对质量和创新的承诺。

01

优质建造质量

高强钢结构 & 精密数控加工,确保在最恶劣的采矿条件下长期可靠运行。

02

高生产率

优化的腔体几何形状和智能设计,实现每小时最大产量并减少停机时间。

03

节能高效

先进的工程设计可将能耗比传统设备设计降低高达20%。

04

全球支持网络

现场安装、调试、操作员培训及备件供应全球可得。
