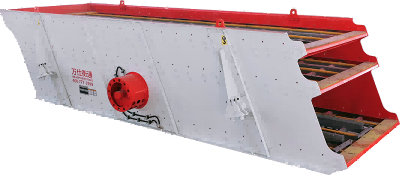

WSHT 圆振动筛（YK 系列）

WSHT Circular Vibrating Screen (YK Series)

Capacity: 60-780 TPH | Precision Engineered for Mining & Mineral Processing

产品概览

The WSHT YK Series Circular Vibrating Screen is a heavy-duty screening machine for classifying and separating bulk materials by particle size in mining, quarrying, and aggregate processing. The circular motion trajectory provides efficient material stratification and high screening efficiency across a wide range of particle sizes. With its robust construction, adjustable amplitude, and multiple deck options, the YK series handles feed materials from 400mm down to fine separations in mineral processing plants worldwide.

Key Features & Benefits

• Circular Motion Trajectory
  Adjustable circular throw pattern provides efficient material stratification and high screening efficiency.
• Heavy-Duty Construction
  Huck-bolted side plates, high-strength cross beams, and heavy-duty vibrator assembly for long service life.
• Multiple Deck Configurations
  Available in 1-4 deck configurations for producing multiple product fractions simultaneously.
• Adjustable Parameters
  Amplitude, frequency, and screen angle adjustable to optimize performance for different materials.
• Quick Screen Changes
  Side tensioning system enables rapid screen media replacement, minimizing production downtime.

Technical Specifications

Working Principle

The YK Circular Vibrating Screen uses a centrifugal force mechanism to generate circular vibratory motion. The vibrator assembly (consisting of eccentric shafts and counterweights) rotates at high speed, creating centrifugal force that causes the entire screen body to move in a circular path. Feed material introduced at the feed end is thrown upward and forward by the vibrating motion, stratifying by particle size as it travels along the deck. Material smaller than the screen openings passes through as undersize, while oversize material is discharged at the screen's end.

应用领域

• 矿物加工
  Classification and sizing of crushed ores in gold, copper, and iron ore beneficiation plants.
• Aggregate Production
  Screening of crushed stone, gravel, and sand for construction aggregate specifications.
• Coal Preparation
  Raw coal sizing, desliming, and dewatering in coal processing and handling operations.
• Quarry Operations
  Primary and secondary screening in hard rock quarry crushing circuits.
