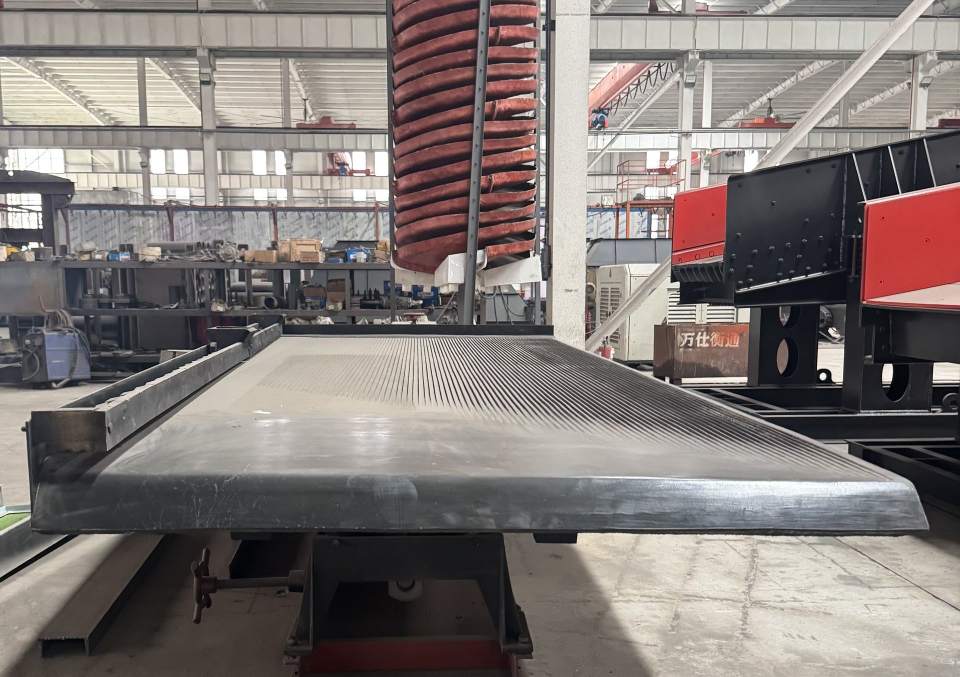

6-S Series Shaking Table - High Precision Gravity Separation Equipment for Mineral Beneficiation
Shaking table, also called mineral shaking table or gold shaking table, is the core gravity separation machine widely used in mineral processing plants. It separates valuable minerals and gangue according to different specific gravity, featuring high concentrate grade, excellent recovery rate, low energy consumption and simple operation. Our 6-S series industrial shaking table is optimized for alluvial gold, rock gold, tin ore, tungsten, chrome, tantalum niobium and manganese ore sorting.
1. Working Principle of Shaking Table
The machine relies on the combined action of table surface reciprocating motion and thin water flow. Raw ore slurry is fed onto the inclined bed surface; heavy high-density minerals sink to the bottom and move forward with table vibration, while light gangue floats on the water layer and flows out with water. Finally, three products including concentrate, middling and tailings are discharged separately to realize effective separation.
2. Main Technical Parameters & Production Capacity
Full Specification Data
| Item | Parameter |
|---|---|
| Processing Capacity | 1-10 tons per hour (different models) |
| Mini Lab Model | 1-3 t/h |
| Standard Industrial Model | 3-6 t/h |
| Large Heavy-Duty Model | 6-10 t/h |
| Feeding Particle Size | 0.074mm - 2mm |
| Matched Motor Power | 1.5KW / 2.2KW Optional |
| Water Consumption | 1-3 m³/h |
| Table Surface Material | Wear-resistant anti-corrosion fiberglass |
| Complete Machine Weight | 350kg - 1200kg |
3. Core Advantages of Our Shaking Table
High Separation Accuracy
Clear stratification of concentrate, middling and tailings, greatly improve precious metal recovery rate.
Long Service Life Bed
Fiberglass tabletop resists abrasion and rust, reduce frequent replacement cost.
Stable Operation System
Low vibration and noise, support 24 hours continuous stable production.
Energy & Water Saving
Low-power drive motor, small water consumption, lower running cost.
Easy Adjustment & Maintenance
Stroke and jig frequency adjustable, spare parts easy to replace.
Compact Structure
Small floor occupation, convenient installation and site transfer.
4. Wide Application Range
- Precious metal recovery: Alluvial gold, rock gold mining separation
- Rare metal sorting: Tin ore, wolframite, tantalum niobium, chrome ore
- Non-ferrous mineral processing: Manganese, iron, copper heavy mineral separation
- Tailings recycling: Recover heavy valuable metals from waste mine tailings
- Small mineral processing plant, lab test, mobile beneficiation line
5. Complete After-Sales Support
- Free technical datasheet with full dimension, weight and capacity parameters
- Customized table surface size and motor configuration based on your ore condition
- Long-term supply of full set wear-resistant spare parts
- Professional mineral processing technical consulting for whole beneficiation line matching
- Real machine photos, running test videos available upon request
Get Shaking Table Quotation Now
If you need high-efficiency shaking table for your mineral project, please contact us. We will provide targeted solution, detailed parameter sheet and competitive factory price according to your ore type, required output and site condition.
Email: jiaoyuange@hnwsht.cn| WhatsApp: +86 15516556129
