详细技术信息、工作原理和应用场景。可根据您的项目需求提供定制配置。

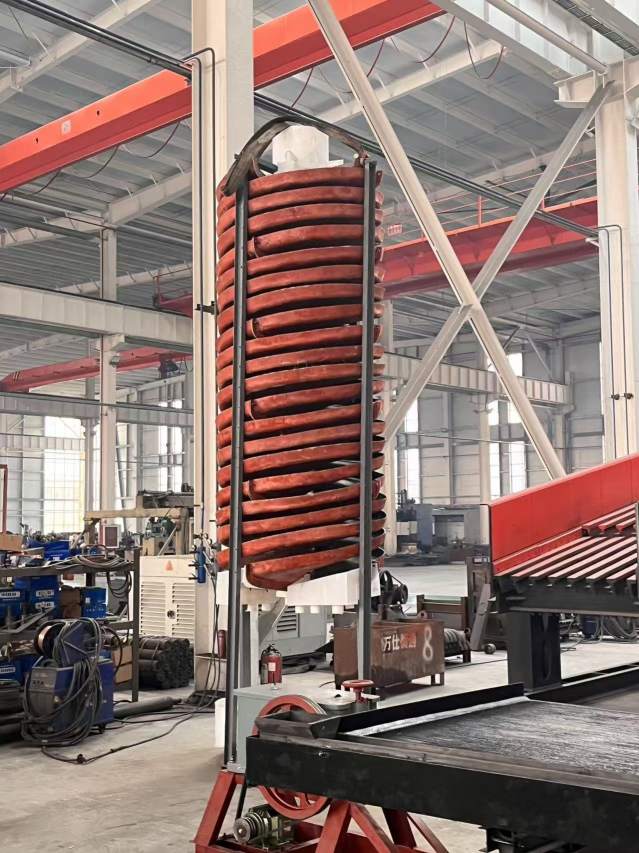

WSHT spiral chute is energy-saving gravity separation equipment without motor power. It uses the density difference between valuable minerals and gangue, combined with spiral water flow layering to realize separation of fine gold, tin, tantalum, iron, manganese ore. The spiral groove adopts thickened polyurethane integrated molding, anti-wear, anti-corrosion and long service life. Only circulating water is needed during operation, low daily running cost, high recovery rate of ultra-fine wrapped gold. It is the ideal matching equipment for ball mill, wet pan mill and gold trommel screen in mineral processing production line.
| Model | Screw Diameter(mm) | Single Groove Capacity(t/h) | Number Of Grooves | Feeding Size(mm) | Material |
|---|---|---|---|---|---|
| 5LL-600 | 600 | 0.3-0.8 | 1/2 grooves optional | 0.03-0.3 | Polyurethane |
| 5LL-900 | 900 | 0.8-1.8 | 2/4 grooves optional | 0.03-0.5 | Polyurethane |
| 5LL-1200 | 1200 | 1.5-3.0 | 4/6 grooves optional | 0.03-0.6 | Polyurethane |
| 5LL-1500 | 1500 | 2.5-4.5 | 6/8 grooves optional | 0.03-0.8 | Polyurethane |

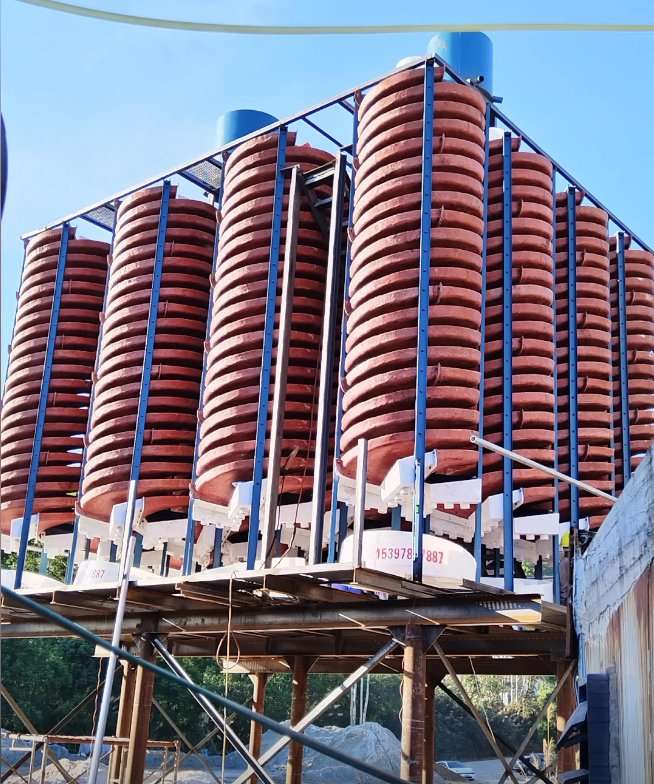

This spiral chute is specially used for fine particle gravity separation of rock gold, river placer gold, tin ore, tantalum niobium ore, iron ore, manganese ore, tungsten ore. Widely applied in small individual gold prospecting, medium-sized rock gold processing plant, mine tailings secondary recovery, overseas African gold mine concentrator projects.
Spiral chute can cooperate with jaw crusher, ball mill, wet pan mill, gold trommel screen, centrifugal gold concentrator, shaking table to form a full set of rock gold & placer gold recovery production line.
专为可靠性而设计，为性能而打造。每款WSHT产品都体现了我们对质量和创新的承诺。
高强钢结构 & 精密数控加工，确保在最恶劣的采矿条件下长期可靠运行。
优化的腔体几何形状和智能设计，实现每小时最大产量并减少停机时间。
先进的工程设计可将能耗比传统设备设计降低高达20%。
现场安装、调试、操作员培训及备件供应全球可得。
