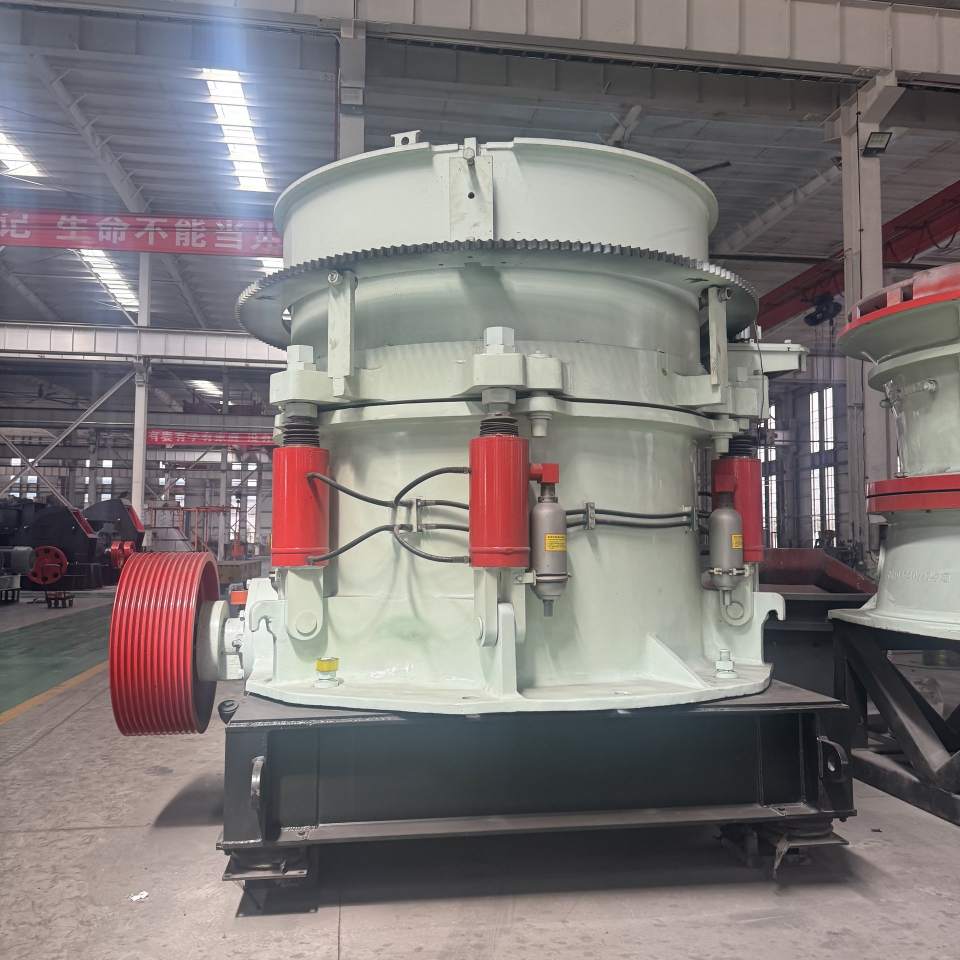

1. Product Overview
The multi-cylinder hydraulic cone crusher is a new-generation intelligent crushing equipment designed for medium and fine crushing of high-hardness ores and rocks. Integrating mechanical, hydraulic, electrical and intelligent control technologies, it abandons the defects of traditional spring cone crushers and single-cylinder cone crushers, featuring strong crushing force, stable operation, high output rate and low consumption. It is the core equipment for mineral processing, aggregate production and quarry crushing lines.
Different from single-cylinder cone crushers with simple structure and limited crushing capacity, our multi-cylinder hydraulic cone crusher adopts peripheral multi-cylinder hydraulic locking and adjusting system. It matches high swing frequency and large eccentricity perfectly, realizing efficient laminated crushing. This equipment is widely applicable to crushing granite, basalt, iron ore, gold ore, tin ore, tungsten ore, limestone and other medium and high hardness materials, serving mining, construction, road infrastructure and other industries worldwide.
2. Core Working Principle
The multi-cylinder hydraulic cone crusher relies on motor-driven eccentric sleeve rotation to drive the moving cone for continuous swing motion. When the moving cone approaches the fixed cone, materials are squeezed, sheared and bent to complete crushing; when the moving cone moves away from the fixed cone, crushed materials are discharged from the crushing cavity by gravity.
Equipped with an independent multi-cylinder hydraulic system, the machine realizes automatic discharge port adjustment, iron-overload protection and full-automatic cavity cleaning. The advanced laminated crushing principle makes materials crush against each other, which effectively reduces wear of vulnerable parts and produces uniform cubic finished particles with excellent grain shape, greatly improving the quality of final aggregates and ore materials.
Optimized spindle structure, stroke and swing frequency parameters greatly improve crushing efficiency. The processing capacity is significantly higher than traditional cone crushers of the same model, with hourly output ranging from 50 tons to 2000 tons, meeting the demands of large-scale and high-yield crushing production lines.
3.2 Intelligent Hydraulic Protection & Low Failure Rate
The multi-point hydraulic control system provides reliable overload protection. When unbreakable foreign matter enters the crushing cavity, the hydraulic system automatically releases pressure and discharges foreign materials to avoid equipment jamming and damage. Full-automatic cavity cleaning function reduces manual operation difficulty and downtime, greatly improving production continuity.
3.3 Uniform Finished Particle Size
Laminated crushing technology realizes selective crushing of materials, effectively reducing flaky and needle-shaped particles. The finished materials have uniform grading and excellent cubic shape, which can fully meet high-standard requirements of construction sand, mineral processing and industrial raw materials.
3.4 Durable & Low Operating Cost
Key wearing parts are made of high-strength wear-resistant alloy materials, with strong impact resistance and long service life. The optimized structural design reduces equipment energy consumption and daily maintenance cost. Compared with similar equipment, it has lower overall operating cost and higher economic benefits.
3.5 Multiple Cavity Types for Flexible Matching
Equipped with a variety of crushing cavities such as coarse, medium and fine types, one machine can realize switching of medium crushing and fine crushing processes. It can flexibly adapt to different material hardness and finished particle size requirements, with strong equipment versatility.
4. Wide Application Scope
Our multi-cylinder hydraulic cone crusher is widely used in various crushing scenarios:
- Mineral Processing Industry: Secondary and tertiary crushing of gold ore, iron ore, copper ore, tin ore, tungsten ore and other metal ores, providing high-quality crushed materials for subsequent grinding and separation processes to improve mineral recovery rate.
- Quarry & Aggregate Production: Crushing of granite, basalt, pebble, limestone and other stones for highway, railway, building concrete aggregate production.
- Solid Waste Recycling: Crushing and recycling of construction waste, ore tailings and other materials to realize resource reuse.
- Industrial Raw Material Crushing: Fine crushing of various hard mineral raw materials for chemical, metallurgical and building materials industries.
5. Product Parameter Features
This series of multi-cylinder hydraulic cone crushers covers multiple models from small to large, supporting customized configuration. It adopts fixed spindle design, stable operation and large crushing force. The full hydraulic control system realizes precise adjustment of discharge port, with simple operation and intelligent management. All equipment undergoes strict factory testing to ensure stable performance and long service life in high-intensity continuous working conditions.
6. Why Choose Our Multi-cylinder Hydraulic Cone Crusher?
As a professional mining equipment manufacturer, we focus on the R&D and production of crushing and mineral processing equipment for many years. Our multi-cylinder hydraulic cone crushers have passed international quality certification, with reliable quality and stable performance. We not only provide high-quality standard equipment, but also support customized crushing solutions according to customer's ore conditions, production capacity and site requirements.
We provide one-stop services including pre-sales scheme design, equipment manufacturing, on-site installation guidance and after-sales maintenance support, helping global customers create higher production benefits with low investment and high return.
7. FAQ
Q1: What materials can a multi-cylinder hydraulic cone crusher crush?
It is mainly suitable for medium and fine crushing of various medium and high hardness ores and rocks, including gold ore, iron ore, tin ore, tungsten ore, granite, basalt, pebbles, limestone, etc.
Q2: What is the difference between multi-cylinder and single-cylinder hydraulic cone crusher?
The multi-cylinder model has stronger crushing force, larger processing capacity, more stable operation and better finished particle shape, which is more suitable for large-scale production lines and high-hardness material crushing; the single-cylinder model is simple in structure and cost-effective for small and medium-sized production lines.
Q3: Can you provide customized production solutions?
Yes. We can configure different models, cavity types and supporting equipment according to your site conditions, raw material hardness, output requirements and finished particle size standards to tailor exclusive crushing production lines.
