详细技术信息、工作原理和应用场景。可根据您的项目需求提供定制配置。

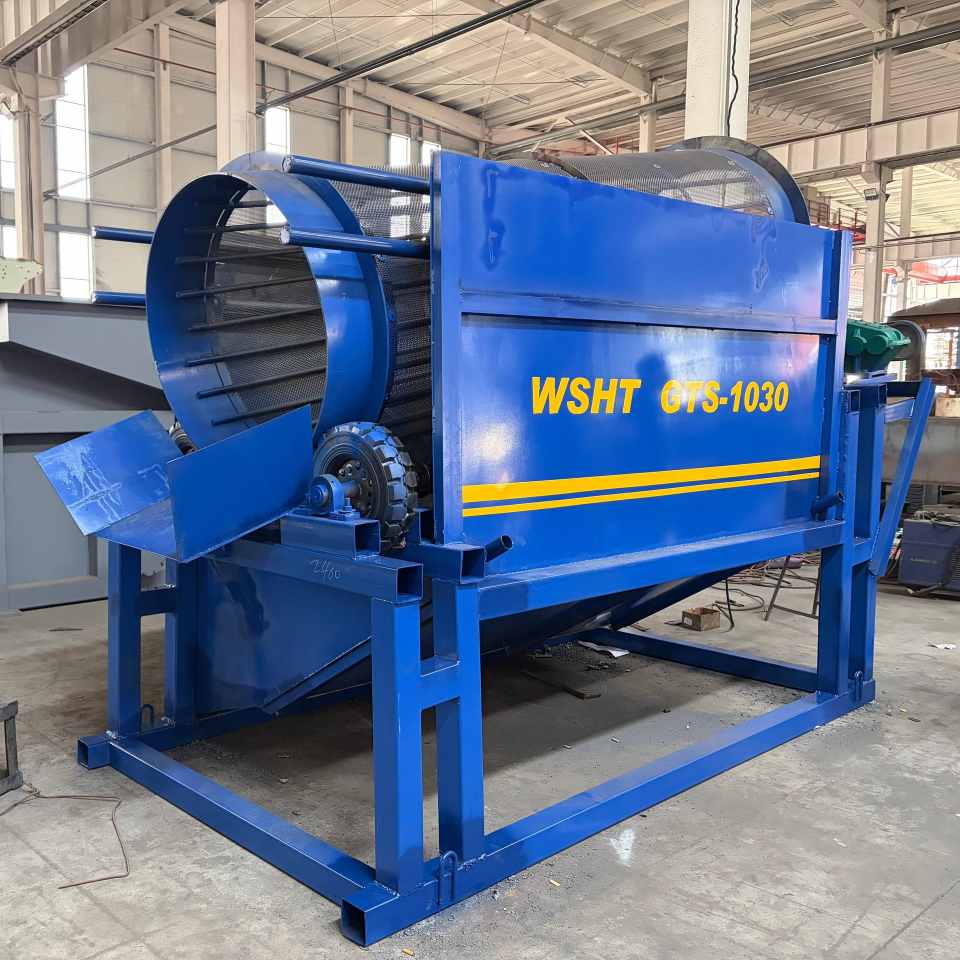

Gold trommel screen is professional alluvial placer gold washing & separation equipment, integrating feeding, high-pressure water scrubbing, clay lump breaking and particle grading all in one unit. It can effectively separate gravel, mud and gold-bearing fine sand, greatly improve the recovery rate of fine gold.

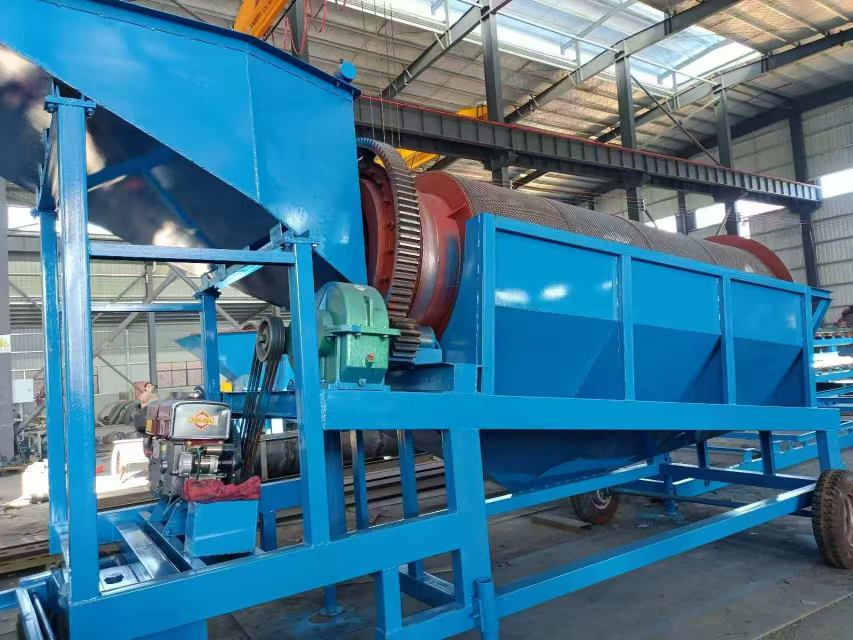

We supply stationary, wheeled mobile and diesel-driven off-grid three types of trommel screens. Equipped with thickened manganese steel screen mesh, wear-resistant and long service life. It can be matched with gold sluice box, centrifugal gold concentrator to form a complete small gold processing line, widely used for river sand gold, muddy placer gold mining in Africa, Southeast Asia and Central Asia.

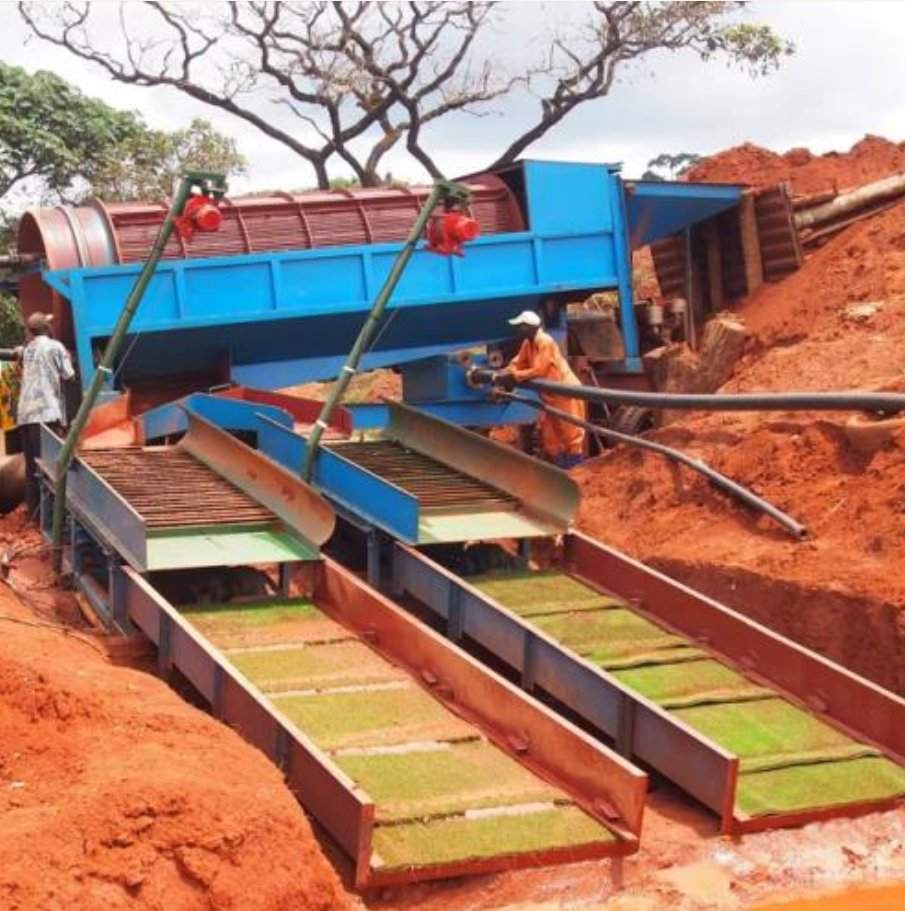

2. Product 3D Layout DisplayComplete set gold washing trommel plant with feeding hopper, scrubbing barrel, rotary screen and double group gold sluice box, supporting loader feeding for large capacity mining work.
| Model No. | Drum Size(mm) | Capacity(t/h) | Motor Power(kw) | Screen Layer | Support Configuration |
|---|---|---|---|---|---|
| GT1020 | Φ1000×2000 | 5-10 | 3.0 | Single/Double Layer | Single sluice box |
| GT1530 | Φ1500×3000 | 15-30 | 5.5 | Double Layer | Double sluice box |
| GT2040 | Φ2000×4000 | 30-50 | 7.5 | Double Layer | Double sluice + centrifugal concentrator matching |
| GT2550 | Φ2500×5000 | 50-80 | 11 | Double Layer | Full set large gold washing line |
This rotary gold trommel wash plant is specially designed for alluvial placer gold mine, river sand gold, muddy gold deposit, gravel gold ore. It fits small individual gold prospecting, medium-scale river gold mining projects, remote off-grid mountain mining sites. Besides gold, it also works for tin, tungsten, coltan, diamond and other heavy mineral separation.
专为可靠性而设计，为性能而打造。每款WSHT产品都体现了我们对质量和创新的承诺。
高强钢结构 & 精密数控加工，确保在最恶劣的采矿条件下长期可靠运行。
优化的腔体几何形状和智能设计，实现每小时最大产量并减少停机时间。
先进的工程设计可将能耗比传统设备设计降低高达20%。
现场安装、调试、操作员培训及备件供应全球可得。
